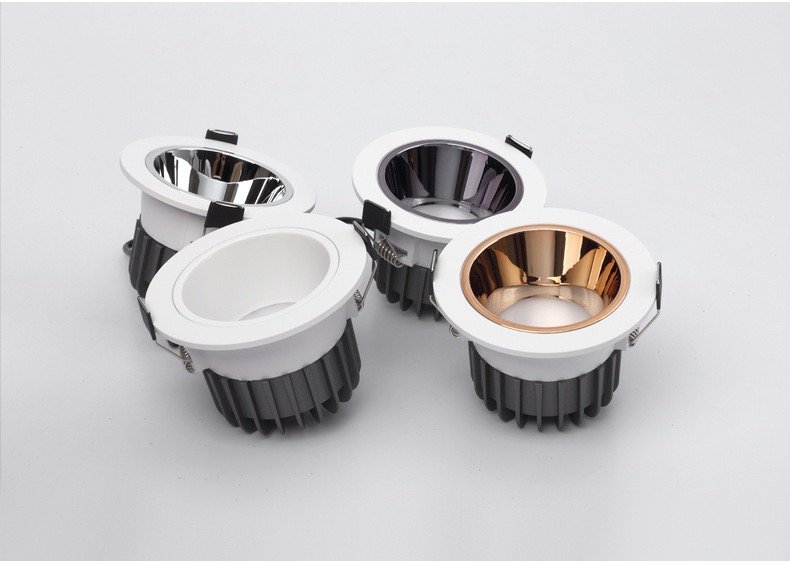

Spot light

1.Product feature :

·With an IP65 waterproof rating, it can be used in various scenarios ·The light source is deeply hidden, and the light is soft and not harmful to the eyes ·Aluminum radiators have a long service life

2.short description

This downlight from Esenfan is IP65 waterproof and can be used both indoors and outdoors. The lamp body is made of aluminum material, featuring efficient heat dissipation. The bottom is equipped with a strip-shaped heat sink and a comprehensive ventilation and convection design, which enables rapid heat dissipation, reduces the light attenuation of the light source, and extends the service life. The retaining ring +PU rubber protective sleeve can prevent the lamp body from being scratched and hands from being pinched during installation, and it is easy to install. It adopts anti-glare lenses, deeply conceals the light source, filters out stray light, and makes the light soft and free of glare. The sealing rubber ring for the wire outlet effectively protects the circuit and eliminates the risk of short circuit.

Product Details

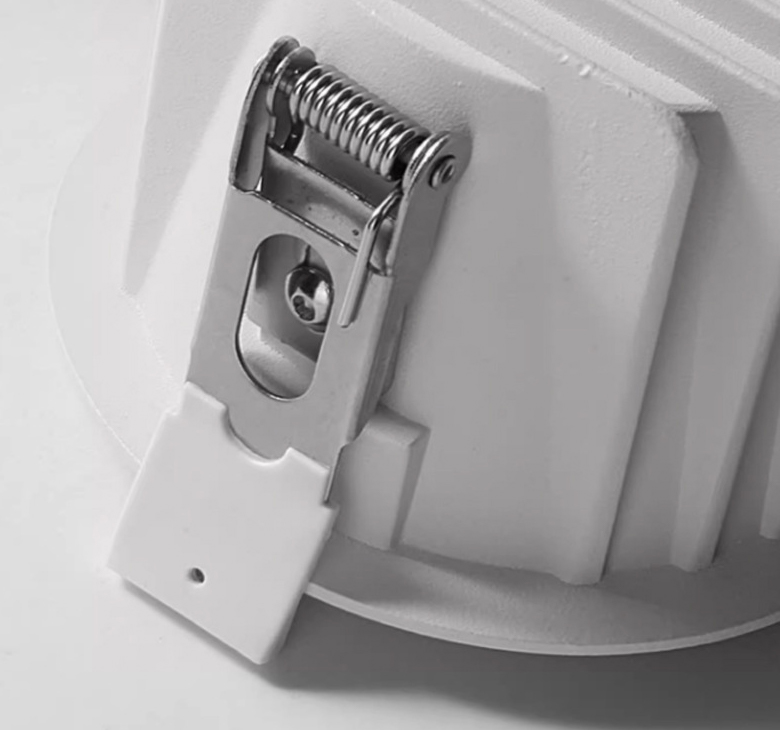

Exquisite craftsmanship details, high-quality retaining ring reinforcement installation.

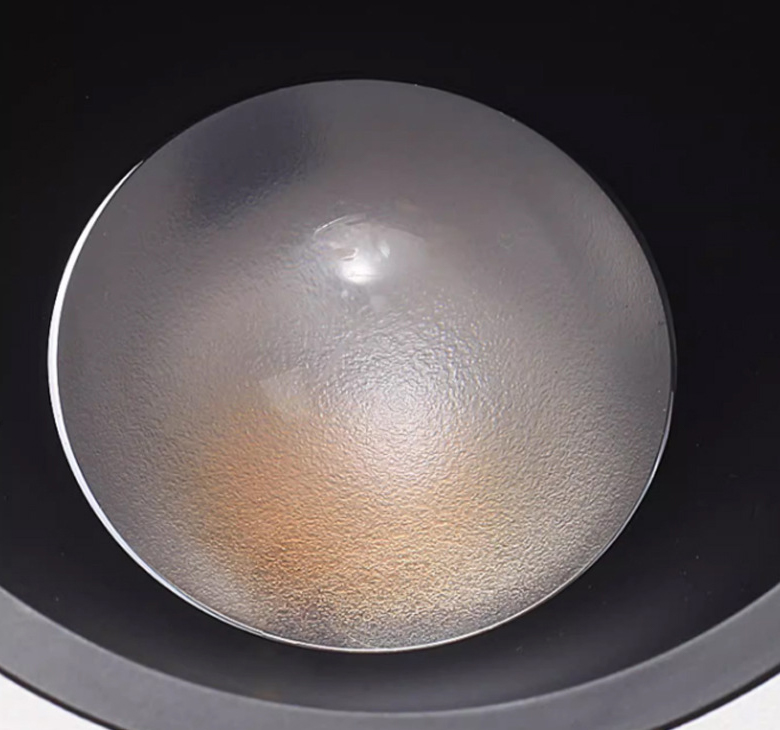

Arc-shaped soft light, the light source is deeply hidden, and the light is soft without glare.

Aluminum radiator, highly efficient heat dissipation, long service life.

Wire outlet, sealing rubber ring, waterproof and impermeable.

Application:

This downlight can be used in various locations: outdoor lighting: such as lighting in roads, squares, parks, courtyards and other places. Industrial lighting: such as lighting in factories, warehouses, workshops and other places. Commercial lighting: such as lighting in shopping malls, supermarkets, hotels, restaurants and other places. Residential lighting: such as lighting in balconies, basements, garages and other places. Special environment lighting: such as lighting in damp environments like basements, tunnels, and gas stations.

Parameter list :

Power	Size（mm）	Cut out	Voltage	RA	CCT	LED Driver	Lumen
7W	Φ94*H54	Φ75	AC175-265V	≥97	3000K/400K/6000K	isolation	100Lm/W
10W	Φ90*H45	Φ75	AC175-265V	≥97	3000K/4000K/6000K	isolation	100Lm/W
15W	Φ114*H68	Φ95-105	AC175-265V	≥97	3000K/4000K/6000K	isolation	100Lm/W
20W	Φ140*H74	Φ120	AC175-265V	≥97	3000K/4000K/6000K	isolation	100Lm/W

FAQ:

Q1:Can I have a sample order for your product?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2:What about the lead time?

Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than

Q3:Do you have any MOQ limit for your product?

Low MOQ, 1pc for sample checking is available
